Adjustable atmosphere environment, clean maintenance, and safe sample operation and observation platform to meet the needs of hypoxic/anaerobic research and biological process development.
The sealed box and gas purification cycle provide a stable and clean atmosphere for anaerobic or low-oxygen operations of oxygen- and water-sensitive samples.
800 × 650 × 650 mm sealed working chamber, which uses vacuum evacuation and inert gas backfilling to reduce the contact between the sample and the air.
The transparent and sealed working space is convenient for observation and operation, and can be used for the processing, transfer and teaching experiments of air and humidity sensitive samples.
| Name | Introduction |
|---|---|
| Automatic control | The program control unit realizes automatic control and detection of equipment operation. |
| Box manual/automatic gas replacement | Supports replacing the cabinet air with inert gas or nitrogen before first use. |
| Transition cabin manual/automatic gas replacement | When materials enter the box, the transition cabin can be manually or automatically replaced with gas. |
| Gas purification control | It can automatically maintain the set atmosphere conditions in the box, or switch to manual control. |
| Foot-operated air pressure control | Use the foot controller to control the inflating or pumping of the box and adjust the air pressure of the box. |
| Purge System Restore | After setting the reduction conditions, the system can automatically complete the purification material reduction process. |
| Online working condition detection | Monitor the working status of components, assist in locating functions and source of component failures. |
| System parameter settings | Realize corresponding working conditions and function settings by setting system parameters. |
| Data logging function | Record equipment operating parameters for traceability and monitoring of experiments or production processes. |
| Control air circuit backup | When the control gas source is temporarily cut off or insufficient, the backup control gas can ensure that the equipment continues to work. |
| Multi-level security system | Provides multi-level safety prompts, alarms and prohibition functions to ensure the safety of personnel and equipment. |
| Purification cycle obstruction protection | When the circulation is blocked, it prompts an alarm and adjusts the wind speed to protect the motor. It also assists in identifying pipe or filter blockages. |
| Configuration and quantity | Technical parameters | Remarks |
|---|---|---|
| Standard transition cabin 1 piece | DN385 × 588 mm | Right side of the cabinet; SUS304 stainless steel, aluminum alloy door cover, built-in movable drawer and door opening assist device. |
| Tool transition cabin 1 piece | DN150 × 350 mm | The right side of the box; made of SUS304 stainless steel, can be made as required. |
| 1 piece of shelf | Double layer | Back-mounted. |
| Box rack 1 piece | Height 900 mm | Equipped with swivel casters; a purification system is integrated into the right rack. |
| Transparent visual panel | Thickness 12 mm | Double-layer laminated tempered glass. |
| 4 gloves | Thickness 0.4 mm | Butyl synthetic rubber. |
| 1 power socket | 220 V, 10 A, 8 holes | Located inside the box, it supplies power to the electrical appliances in the box. |
| Lighting system | Fluorescent tube | Provides lighting inside the box. |
| 3 sets of spare interfaces | KF40 | Gas or liquid access device; SUS304 stainless steel, equipped with quick connector. |
| 1 vacuum pump | D16C, pumping volume 4 L/S | Equipped with oil mist filter. |
| 2 HEPA filters | Filter precision 0.3 μm | It is used to filter dust in the box and protect the ventilation pipes from being unobstructed. |
| 2 vacuum gauges | Mechanical dial display | Measure the vacuum degree of the standard transition cabin and tool transition cabin. |
| 1 pressure gauge | Mechanical dial display | Measure the air pressure of the box. |
| Foot controller 1 piece | Double pedal type | Control the gas replenishment and emptying of the cabinet. |
| Control system | Color touch screen: 6 inches | Touch screen and PLC are configurable; support multi-language operation interface switching. |
| 1 pressure sensor | -2500 ~ 2500 Pa (relative pressure) | Touch screen display. |
| Moisture analyzer 1 piece | 0 ~ 1000 ppm, accuracy 0.1 ppm | Touch screen display. |
| Oxygen transmitter 1 piece | 0 ~ 1000 ppm, accuracy 0.1 ppm | Touch screen display. |
| Gas purification system | Single purification column | It has water and oxygen removal functions and is integrated into the cabinet frame. |
| Organic solvent adsorption system | 21 L | Installed in the glove box pipeline to absorb solvent gas generated during use and protect purification materials. |

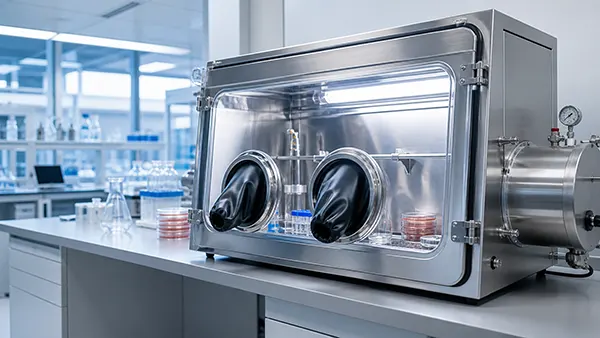

Provides a stable, anaerobic culture environment for anaerobic microorganisms to ensure the accuracy of bacterial growth and metabolism research.

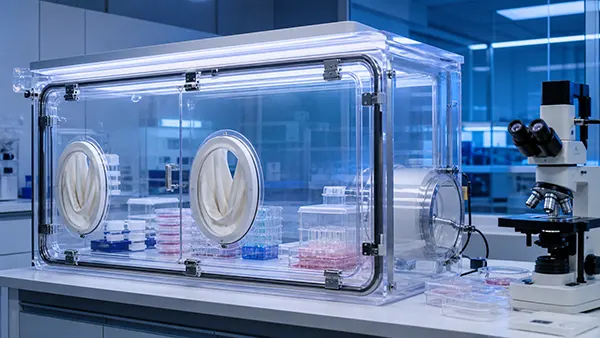

Precisely control the hypoxic atmosphere, simulate the physiological/pathological hypoxic microenvironment, and support the study of cell functions and signaling pathways.

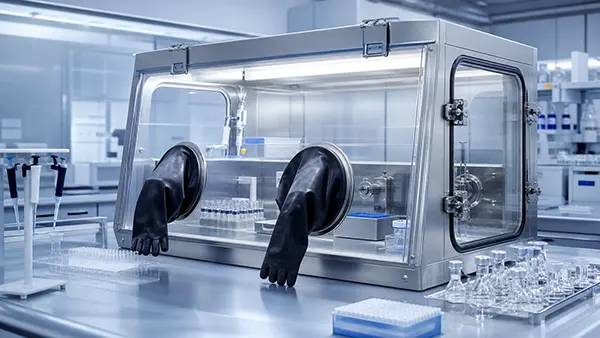

Sample preparation, packaging and transfer are performed in a clean, controlled atmosphere to reduce the risk of contamination and oxidation.

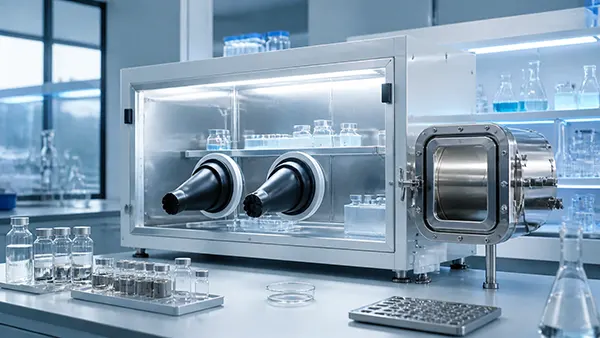

Simulate the pharmaceutical production and storage environment to evaluate the stability of materials, packaging and preparations under specific atmospheres.
In-depth understanding of process requirements and providing customized engineering services from solution design to implementation.
Years of experience in glove box and laboratory system integration, the solution is mature and reliable.
Core atmosphere control and detection technology, accurate data and stable operation.
The professional engineering team provides atmosphere debugging and operation training to get started quickly.
Global delivery network and localized services, timely response and worry-free after-sales.
Tell us about your application, chamber size, H2O/O2 specifications, or integration requirements, and our engineers will recommend a suitable configuration.
